HC-2285 Oil Extractor
Home / Mobile Waste Oil Tank Series / HC-2285 Pneumatic Oil Extractor

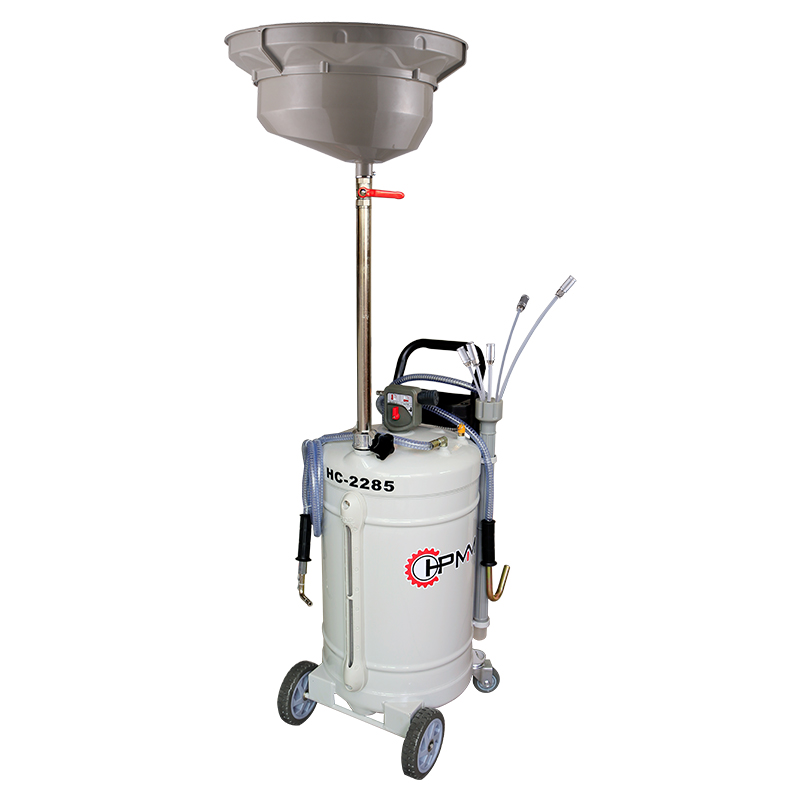

HC-2285 Pneumatic Oil Extractor

Functions: Remove and extract waste fluids or oil out from engine and etc. with flexible PVC tube and robust CU probe. Power from compressed air

Category: Mobile Waste Oil Tank Series
  • Description

Product Description

Product description:

◆Use compressed air as power source
◆Various diameter of extraction probes are provided to fit the use of different cars.
◆Vacuum cylinder and oil tank at a same time, increase oil extraction speed
◆The cylinder of high grade transparency adopted can observe and measure the oil capacity primarily.
◆Applies to extraction and temporary storage of all kinds of machineryand lubricants.

Specification:

Functions: Remove and extract waste fluids or oil out from the engine and etc. with a flexible PVC tube and robust CU probe. Power from compressed air



Tank capacity 80L
Collection bowl capacity 16L
Air inlet pressure 6-8Bar
Air inlet connection 1/4”
Air pressure for oil discharge 0.7~1Bar
Vacuum degree -1~0Bar
Oil temperature range 40-60℃
Suction Speed(max.) 6.5Liter/m
N/G weight 18.5/21.5kgs
Package dimension 440*440*1000mm
