HC-2290 Oil Extractor
Home / Mobile Waste Oil Tank Series / HC-2290 Pneumatic Oil Extractor

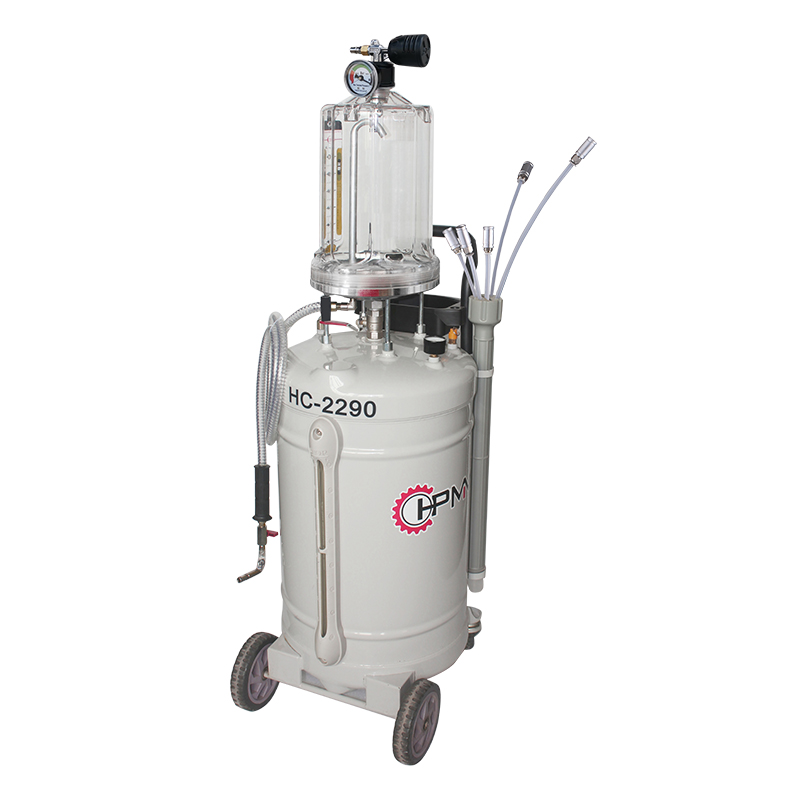

HC-2290 Pneumatic Oil Extractor

Functions: Remove and extract waste fluids or oil out from engine and etc. with flexible PVC tube and robust CU probe. Power from compressed air

Category: Mobile Waste Oil Tank Series
  • Description

Product Description

Product description:

1.Vacuum&Explosion-proof integrated mechanism(Patented)
2.Modular Cylinder(Patented)
3.Tool tray
4.Liquid level display cover(Patented)

Specification:

Functions: Remove and extract waste fluids or oil out from the engine and etc. with a flexible PVC tube and robust CU probe. Power from compressed air



Tank capacity 80L
Modular cylinder capacity 9L
Air inlet pressure 6-8Bar
Air inlet connection 1/4”
Air pressure for oil discharge 0.7~1Bar
Vacuum degree -1~0Bar
Oil temperature range 40-60℃
Suction Speed(max.) 6.5Liter/m
N/G weight 18.5/21.5kgs
Package dimension 560*440*1000mm
