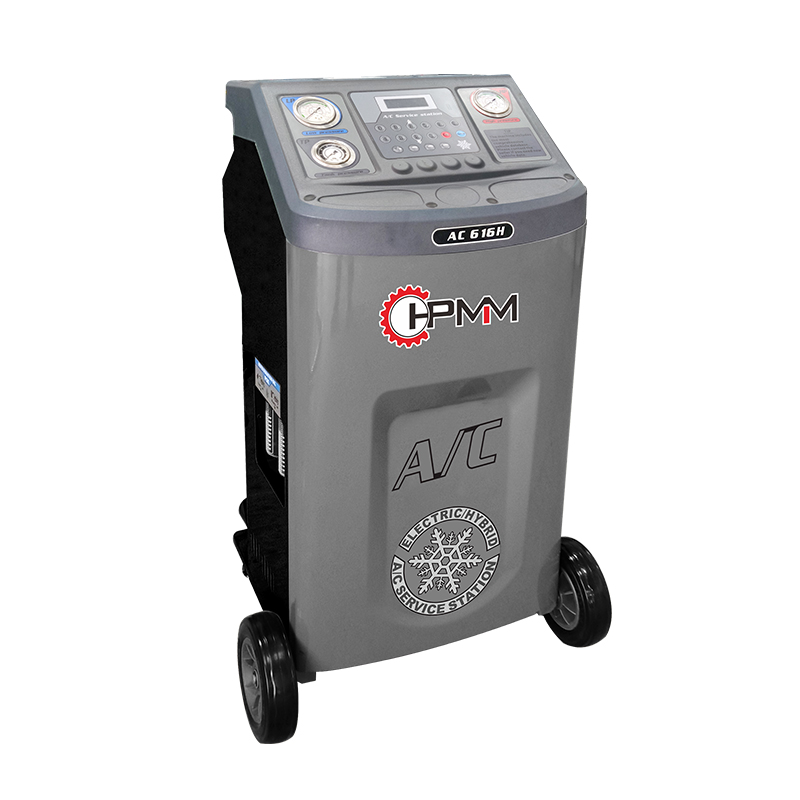

AC616H A/C Recover, Recycle And Recharge Machine

AC616H A/C Recover, Recycle and Recharge Machine

This AC616H A/C recover, recycle and recharge machine was designed to recover the residual refrigerant from the A/C system. As many impurities including frozen oil, air, water vapor and etc. Causing a lot of bad effects, such as high temperature, reducing the refrigerant effect, causing leakage, pipe block by ice block, increasing engine loading and etc…

Product Description

This machine was designed to recover the residual refrigerant from the A/C system. As many impurities including frozen oil, air, water vapor and etc. Causing a lot of bad effects, such as high temperature, reducing the refrigerant effect, causing leakage, pipe block by ice block, increasing engine loading and etc…

Features:

● Convenient to observe the oil level of the vacuum pump

● Able to drain and collect the used oil to the oil tray

● Big caster better fits for the uneven ground

General Information:

General information Suit for Hybrid car
Refrigerant: R134a
Mode: Manual
Screen: LCD
Printer：/
Database：/

Specifications

Recovery speed	180~350G/min
Recharge speed	800~1500G/min
Vacuum speed	60L/min
Refrigerant tank available capacity	14 L
Electronic scale range	0~35KG
Oil bottle capacity	300ML
Operating temperature	5~50℃
Voltage	AC220v/50hz/1ph
Max. working pressure	17.5bar
Low-pressure protection	Less than 1 bar
Electronic scale precision	±10g
Electronic scale precision(Frozen oil)	/
Compressor	275w
