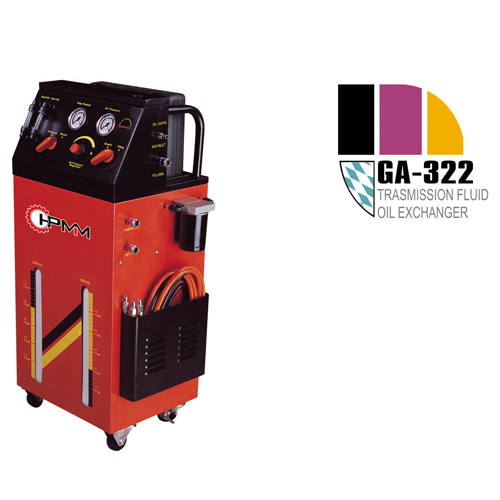

Product Description
Specifications
| Item | Description |
| Functions | Remove, clean, and replace fluid from most types and models of automatic gearboxes, transmissions, hydraulic torque transmissions, gearbox radiators and radiation pipelines |
| Working Air Pressure | 5~6bar/70 ~90 PSI |
| Air Inlet | 1/4”-18 NPT |
| Oil Inlet and Return Hoses
|
2×126 (L) x1/2(dia.) inches (1-red, 1-blue)
All with male and female quick couplers, 300 PSL (max.) rated |
| Pressure Regulator | Manual control dial, locking, 1-1/2*1-1/2 inches |
| Pressure Gauges | Both 2-3/4 (dia.) inches;0~100 PSI, 20 PSI increments; 0~7 Bar, in 1 and 1/10 Bar increments |
| Filter | Auto Oil Filter, 4-3/4(L) x 3(dia.) inches; 17mm x 1.7 female threads |
| Overall Dimensions | 42(H) x 21-1/2(W) x 17(D) inches
|
| Fluid Capacity | 2tanks (for new and old fluids), 30L/8 gallons per tank |
| Operating Temperature | Less than 80℃ |
Features:
Remove, clean and replace transmission fluid (AFT) from most types and models of automatic transmissions. Hepl restoring gearbox’s speeding performance, reducing vibration and oil consumption.
Free of disassemble, time efficient and easy operation.
