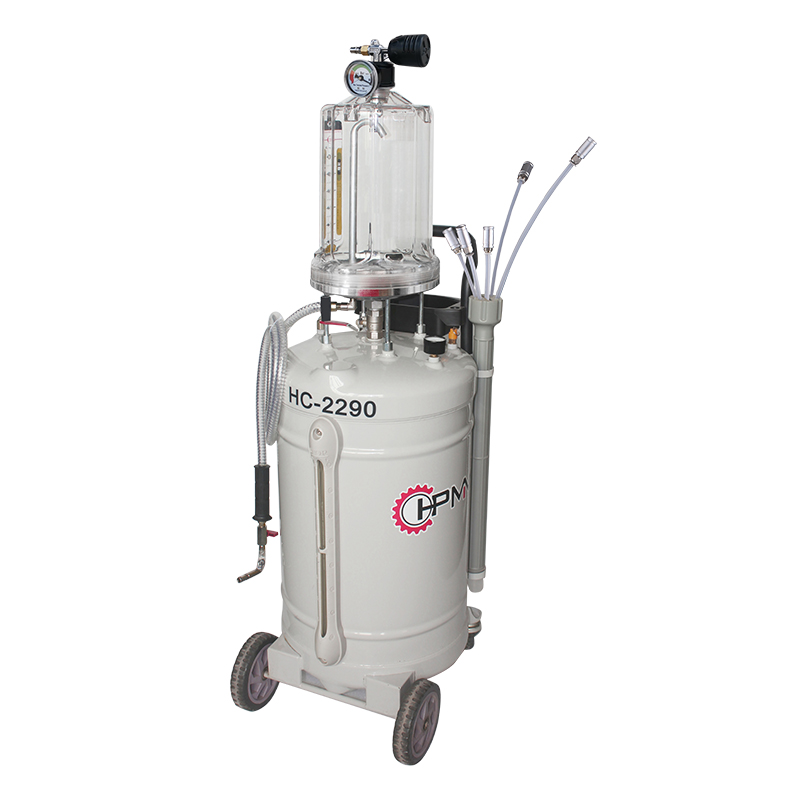

Description
Product description:Â Â Â Â Â Â Â
1.Vacuum&Explosion-proof integrated mechanism(Patented)
2.Modular Cylinder(Patented)
3.Tool tray
4.Liquid level display cover(Patented)
Specification:
Functions: Remove and extract waste fluids or oil out from the engine and etc. with a flexible PVC tube and robust CU probe. Power from compressed air
| Tank capacity | 80L |
| Modular cylinder capacity | 9L |
| Air inlet pressure | 6-8Bar |
| Air inlet connection | 1/4” |
| Air pressure for oil discharge | 0.7~1Bar |
| Vacuum degree | -1~0Bar |
| Oil temperature range | 40-60℃ |
| Suction Speed(max.) | 6.5Liter/m |
| N/G weight | 18.5/21.5kgs |
| Package dimension | 560*440*1000mm |
