Product Description

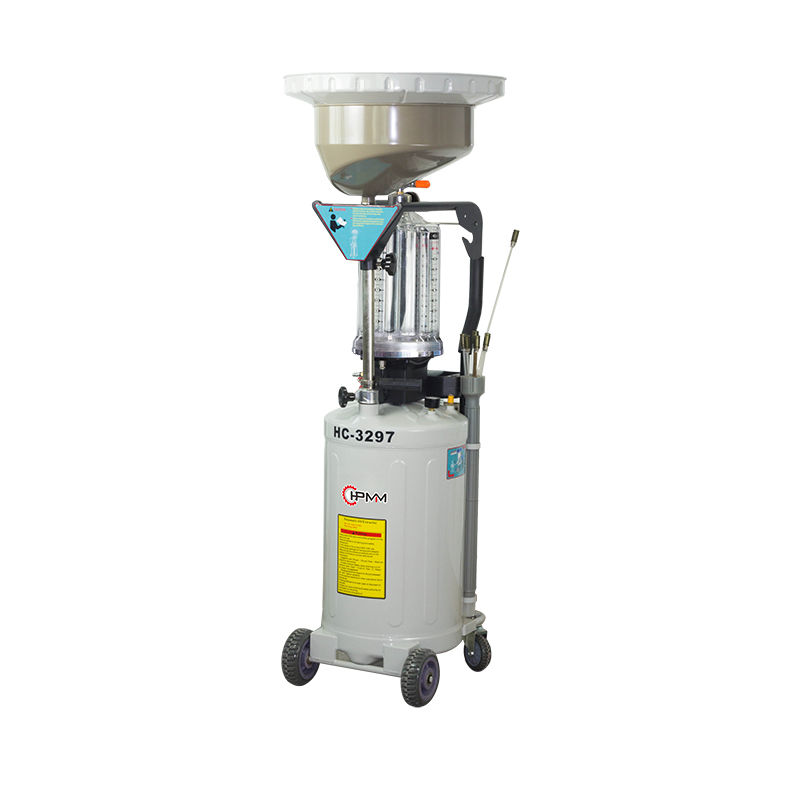

Product description:
1.Vacuum&Explosion-proof integrated mechanism(Patented)
2. Modular Cylinder(Patented)
3. Tool tray
4. Support stand
5. Oil display scale
6. Waste oil collection
7. Resistant PVC wheel
8. lift the handlebar
9. Oil tank(Patented)
Specification:
| Tank capacity | 80L |
| Collection bowl capacity | 20L |
| Modular cylinder capacity | 11/12L |
| Air inlet pressure | 6-8Bar |
| Air inlet connection | 1/4” |
| Air pressure for oil discharge | 0.7~1Bar |
| Vacuum degree | -1~0Bar |
| Oil temperature range | 40-60℃ |
| Suction Speed(max.) | 6.5Liter/m |
| N/G weight | 22/27kgs |
| Package dimension | 555*445*1450mm |
