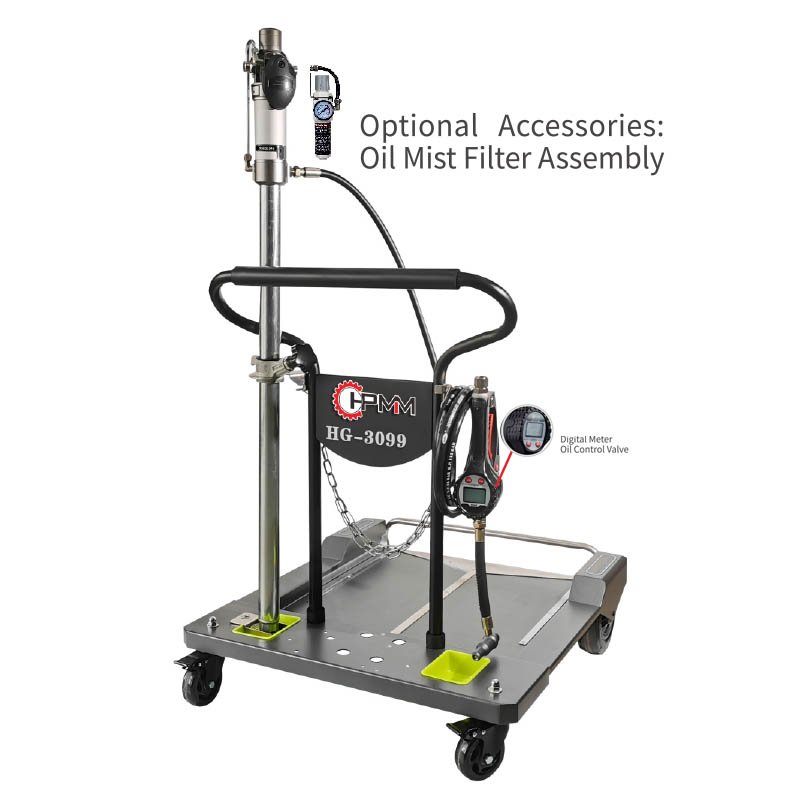

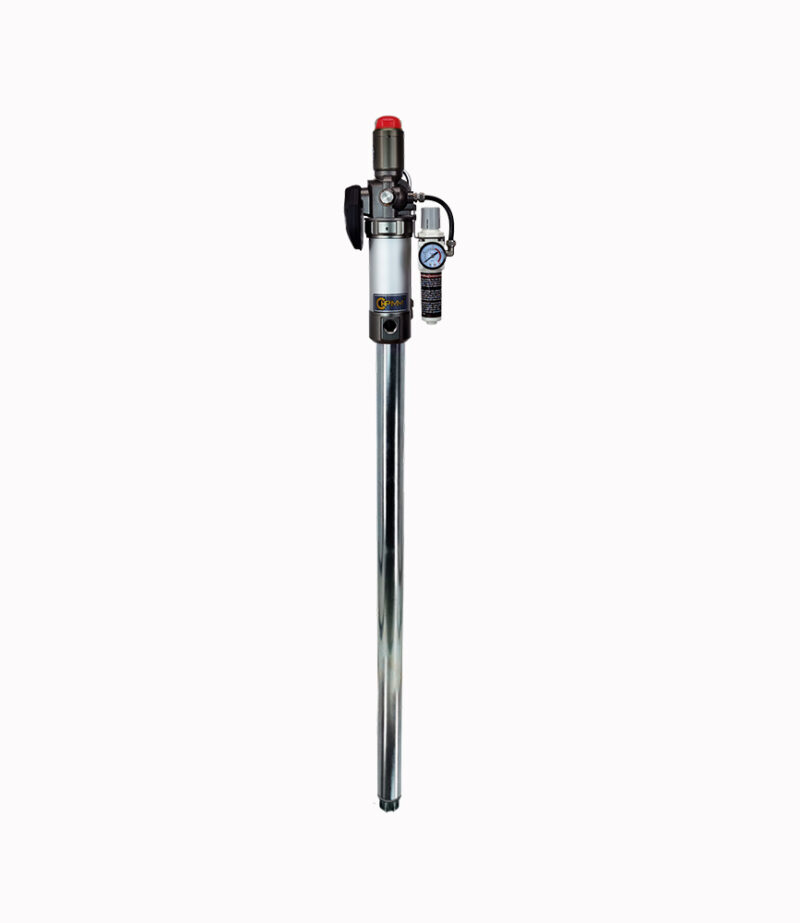

HG-3099 mobile oil pump kit includes: 80981025 pre-set digital meter oil control valve,90031940 oil pump, fully adjustable for all known 180-200KG containers (round, square, and rectangular). The pump is held firmly by the trolley unit. For gear oil, automatic transmission fluids, and all other lubricating oils. Easy changeover of containers. The pump bracket secures the drum.
HG-3099 mobile oil pump kit includes: 80981025 pre-set digital meter oil control valve,90031940 oil pump, fully adjustable for all known 180-200KG containers (round, square, and rectangular). The pump is held firmly by the trolley unit. For gear oil, automatic transmission fluids, and all other lubricating oils. Easy changeover of containers. The pump bracket secures the drum.
Features of product：
1. Mobile Oil Pump Unit
2. Suit for All kinds of Engine Oil and Gearbox Oil
| Air supply | 4-8bar |
|---|---|
| Pump ratio | 3:1 oil pump |
| Air consumption | About 240 L/Min |
| Suction tube diameter | 46mm |
| Max.flow rate | 22L/Min. |
| Length of pump | 940mm |
| Air inlet connection | 1/4″quick plug |
| Oil outlet connection | 1/2BSP |
| Duty of trolley | About 180~200kg |
| Voltage(pilot light) | DC3-6V |
