HPMCO-04 Oil Managerment System

HPMCO-04 Oil Managerment System

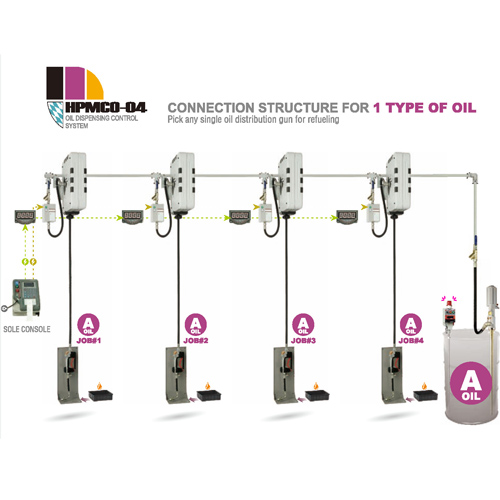

The system distributes different types of lubricating oil and extend to multi-refuel stations (default setting for this product is 1~4 stations) oil distribute through the oil tubes running from the central oil depot to form an integrated oil supply system.

SKU: HPMCO-04 Category:

Product Description

Specifications:

content parameter
System HPMCO-04 (vice console equipped with printing function)
Language Chinese/English/Russian
Power supply AC220V/50Hz
Precision rate ±3‰
Temp -30~70℃
Humidity 40%~80%
Station numbers 1-4
Max storage 300 records
Max station One station
Seamless tube size Φ25*19mm
Lubrication pump 3:1/5:1/ lubrication pump
Pressure ≤70bar
Suitable distance 1~500m
Type of oil Gear oil, engine oil (max viscosity:SAE240)
Hose reel IRN2104/IRE2104
Oil gun Digital display/normal oil gun
Printing function Support
Remote management Non support
Data download USB
Low liquid level Optional
LED digit display Optional

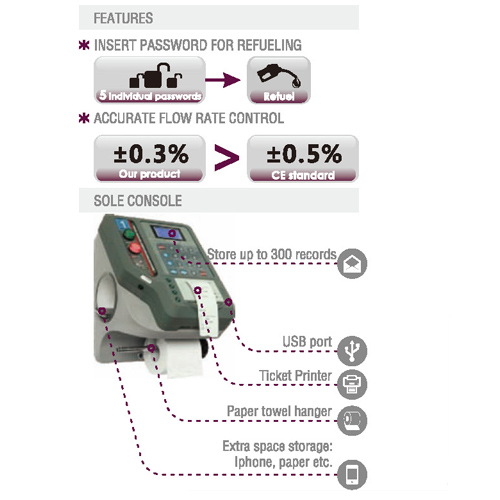

Description:

  1. The system distributes different types of lubricating oil and extend to multi-refuel stations (default setting for this product is 1~4 stations) oil distribute through the oil tubes running from the central oil depot to form an integrated oil supply system.
  2. This unit controls up to 4 stations;
  3. The vice console equipped with USB port, data and records can be transferred to portable external drive.
  4. The system has a complete set of password control program (5 set PS) to provide security and protection of you data.
  5. Database management supports data query, delete history and records of printed data.
  6. Main console (vice console) store up to 300 records.
  7. Low liquid level sensor provides automated safety protection and emergency shut-down function to ensure its flow precision when the drum is emptied.
  8. All the pipe joints are use of high strength pipe connectors with no threaded connection required. Quick installation and easily maintained, firmly secured without oil leakage.
  9. Each station equipped with large LED digit on top that shows the volume dispensed during the transaction which can be viewed from distance, the volume number remains until a new task is required.
  10. Precision of flow rate complied EU standard, units of measure can be selected （L/Gal/QT/PT）
  11. Can be updated to CMCO oil distribution system upon request.
