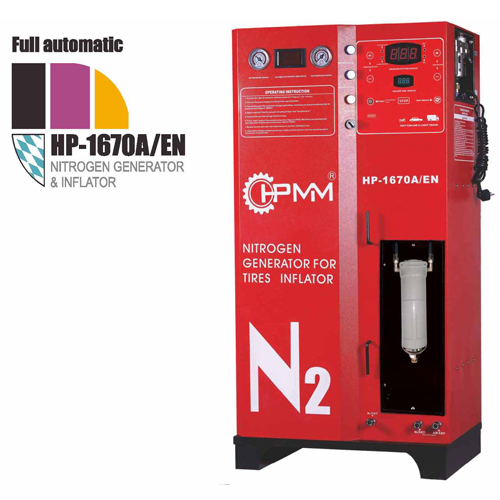

HP-1670A/EN Nitrogen Generation System

HPMM offers the largest line of nitrogen generators so there’s sure to be a model that suits your situation. Our Pressure Swing Adsorption (PSA) systems are becoming the standard for both automotive and fleet applications.

SKU: HP 1670A/EN Category: Nitrogen Generation Tags: nitrogen generator for tires, nitrogen generator manufacturer, nitrogen in tires, nitrogen tire filling stations, nitrogen tire inflation machines, nitrogen tyre inflation, tire nitrogen

Description

Description

HPMM nitrogen generators’ legendary performance and durability with the highest output available, making it the perfect choice for truck tire facilities, fleet operators and ultra high volume service centers.

SPECIFICATIONS

Function:	Inflating tires with nitrogen instead of air
Suit for:	Car& light truck
Power:	220V ±10%,, 50/60Hz,1PH
Nitrogen Generated:	Through high quality filtration
Nitrogen Purity:	92~99%
Air Inlet Pressure:	8~10Bar/116~145PSI
Air Compressor Required	5.5~7.5 KW, 10Bar/145PSI, 1~1.5M³/Min
Nitrogen Outlet Pressure:	1~6Bar/15~87PSI
Output Capacity:	50~70L/Min
N2 Tank Capacity:	70L/18.5 Gallon inside
Standard:	2 hoses
Dimension:	7105201390MM
N.W/G.W:	105/113KGS

FEATURES
● LED digital display for pressure, time & nitrogen purity
● Equipped with full automatic hose-reel, one pipe accomplishes all functions
● Equipped with high precision water/oil filter & separator
● Equipped with full automatic water/oil filter & separator, it can drain the water out automatically at any time
● Double-level filtration help prolong the lifetime of main parts inside
● Equipped with independent backup system for computer, this helps machine could work while something wrong with the computer
