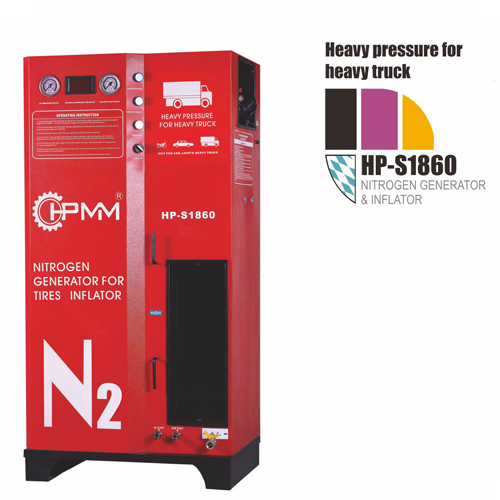

HP-S1860 Nitrogen Generation System

HPMM offers the largest line of nitrogen generators so there’s sure to be a model that suits your situation. Our Pressure Swing Adsorption (PSA) systems are becoming the standard for both automotive and fleet applications.

SKU: HP S1860 Category: Nitrogen Generation Tags: nitrogen generator for tires, nitrogen generator manufacturer, nitrogen in tires, nitrogen tire filling stations, nitrogen tire inflation machines, nitrogen tyre inflation, tire nitrogen

Description

Description

HPMM nitrogen generators’ legendary performance and durability with the highest output available, making it the perfect choice for truck tire facilities, fleet operators and ultra high volume service centers.

SPECIFICATIONS

Function:	Inflating tires with nitrogen instead of air
Suitable for:	Car, light & Heavy truck
Power:	220V ±10%,, 50/60Hz, 1PH
Nitrogen Generated:	Through high quality filtration
Nitrogen Purity:	92~99%
Air Inlet Pressure:	14~16Bar/203~232PSI
Air Compressor Required	5.5~7.5 KW, 15Bar /215PSI, 1.5M³/Min
Nitrogen Outlet Pressure:	7~13Bar/102~188PSI
Output Capacity:	100~120L/Min, 26.5~30 Gallon/Min
N2 Tank Capacity:	70L/18.5 Gallon Inside
Standard:	2 hoses + vacuum generator& N2 inflator
Optional:	220L/58 Gallon N2 Tank external
Dimension:	7105201520 / 4304301250MM
N.W/G.W:	147/155KGS

FEATURES

. Heavy duty suit for heavy truck.

. Fast nitrogen generation & inflation speed.

.200L nitrogen tank enables enough storage of N2 for rush hours.

. Equipped with high pressure & precision oil/water vapor filter &

separator.
